Evolution Powersports

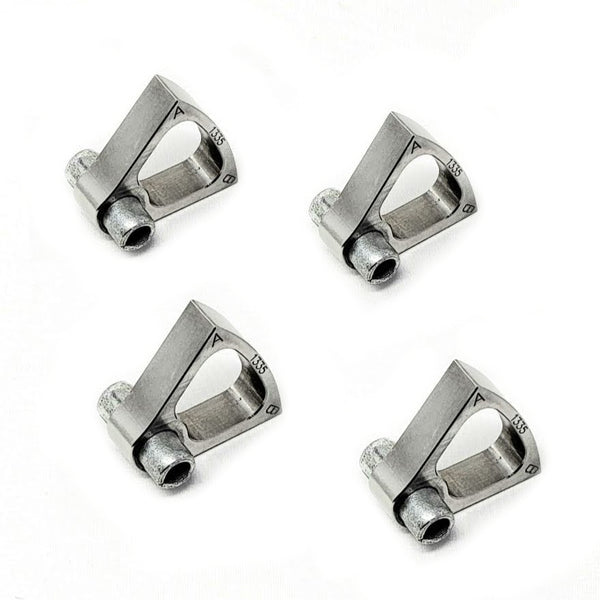

Clutch Ramps, Set of 4, for TAPP Primary

Clutch Ramps, Set of 4, for TAPP Primary

407RU0021

$155.00 USD
$155.00 USD
Sale Sold out
Shipping calculated at checkout.
OPTIONS

Fitment: UNIVERSAL

Not sure if this will work for your UTV? Give us a call at (520) 849-6208 so we can help find the right part for you!

DESCRIPTION

Your EVP.MOde Spec TAPP clutch comes with a set of (4) pre-chosen ramps that have been tested in many scenarios and have been deemed to be the most generic in most situations. Each ramp has an 'A' profile side and 'B' profile side. 'A' side will always be lower engagement, 'B' side will be higher engagement. Changing the profile of the ramp will have many effects on the shift profile including engagement rpm and back shift. This should only be done by an experienced tuner.

IMPORTANT - Always adjust the ramp profile in pairs across from each other, if you do not the clutch will be out of balance.

RAMP PROFILE A Side B Side ENGAGEMENT
1328 Convex A Side 2900+ RPM
B Side 4500+ RPM		 Medium/High
1335 Concave A Side 1700+ RPM
B Side 2400+ RPM		 Low/Medium

ª?

  • Flipping 2 ramps from 'A' side to 'B' side will increase your engagement roughly 600-800rpm.
  • Flipping all 4 ramps from 'A' side to 'B' side will increase your engagement roughly 1200-1600rpm.


Adjusting Ramp Angle:
The ramp angle in your TAPP Clutch is adjustable from the outside via the use of the Quick Shift Bolts. As with other clicker style clutches the higher the number, the higher the RPM. This will mainly affect the full shift speed but also affects the engagement and low speed slightly. On the TAPP clutch each ramp has its own quick clicker adjustments. Each clicker has (6) adjustments. Each click will add or subtract 25 RPM but they need to be done opposite pairs actually adding/subtracting 50 RPM.

IMPORTANT - Always adjust the ramp angle in pairs across from each other, if you do not the clutch will be out of balance.
