Description

Replaces OEM PN's 422280651 / 422280652 for the X3/Defender/Sport modes Replaces OEM PN's 715900212 / 715000302 / 422280364 for the OG Maverick, Commander, Outlander & Renegade Models

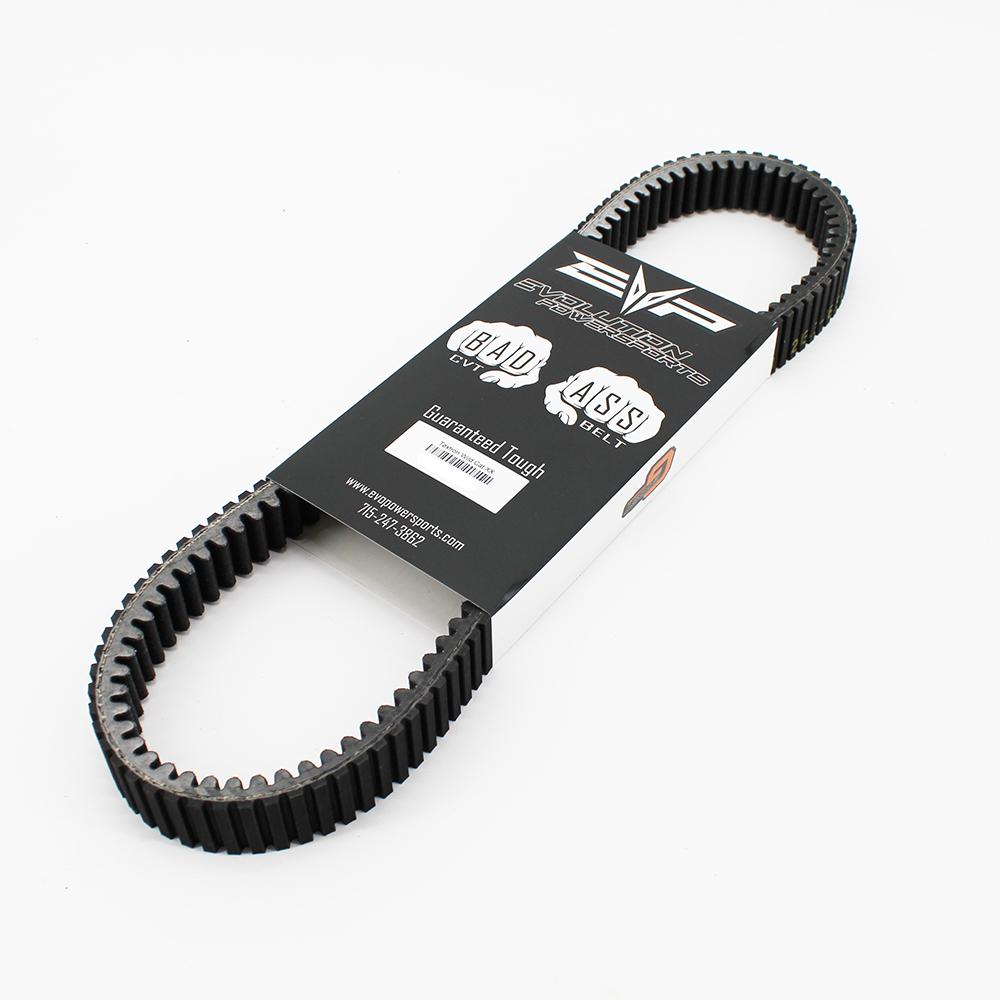

Sand Storm Belt (SS)
The SS Belt is built for the extreme heat, dirt and dust from the dunes/desert. This is a great all-around belt that acts like the OEM belt in terms of engagement and operating RPM?Ž“s.

• Next Generation high-twist Aramid Fiber cord for HIGH HORSEPOWER TENSILE LOAD requirements
• Bottom cog is impregnated with short Aramid Fibers for better belt-to-sheave adhesion and reduced overall belt temperature
• Latest bottom cog design for greater rotational efficiency at full shift
• Encapsulated Aramid Fibers in cord to increase rotational strength and lower overall cord friction
• Precision ground sidewall angle (SCUFFING) for smooth engagement, increased power transfer and lower operating belt temperature
• Aramid Fiber cord versus polyester, wraps over bottom cogs for increased bottom cog strength
• Increased cord pop-out resistance
• Increased top cog pressure load design that increases sidewall rigidity, prevents top cog bowing, but still allows for increased rotational flexibility

FITMENT

2016-2018 Maverick / Max 1000 Turbo all models (excludes X3 models)
2013-2018 Maverick / Max 1000 all models (excludes X3 models)
2011-2020 Commander 1000 / 800 all models
2007-2023 Renegade 1000 / 850 / 800 / 570 / 500 all models
2006-2023 Outlander 1000 / 850 / 800 / 650 / 570 / 500 all models
