Baja Designs

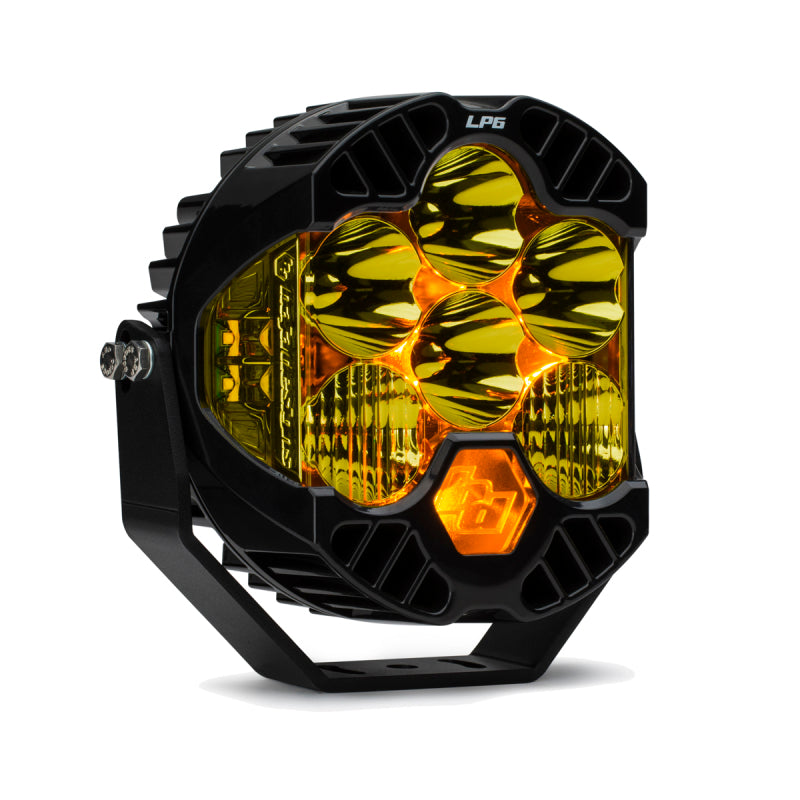

Baja Designs LP6 Pro Driving/Combo LED - Amber
Baja Designs LP6 Pro Driving/Combo LED - Amber
SKU:BAJ270013
Fitment: UNIVERSAL
Couldn't load pickup availability
Not sure if this will work for your UTV? Give us a call at (520) 849-6208 so we can help find the right part for you!
LP6 Pro Driving/Combo LED - Amber
The LP6 Pro is a 6-inch powerhouse featuring a total of 11,225 total lumens and of 200-degree spread of usable LED light thanks to the dedicated peripheral lighting of our patented Integrated Peripheral Technology (IPT). To keep your light performing at its highest potential, the LP6 integrates our proprietary Direct Ducted Cooling (DDC) technology. This feature allows air to travel through the front of the housing, over the rear heat sinks – drastically improving cooling capacity and performance. With an colored daytime running light, low power, and high-power mode, the LP6 easily fulfills all your lighting needs.
The LP6 Pro is available in multiple patterns to suit your needs. The Driving/Combo pattern provide maximum trail coverage in a single light. The Driving/Combo pattern is equipped with both Driving (42 degrees) and spot (8 degrees) optics to provide you with a smooth blend of light for both near-field applications and distance (Lighting Zones, 1,2, 3). The Spot pattern is a longer and narrower 8-degree beam focus for illumination further down the trail or road (Lighting Zone 4 & 5) and is designed to be used in conjunction with additional wide cornering and/or driving/combo auxiliary lights.
Specifications
| Amperage Rating (A) | 7.500 |
| Average Rated Life (hr.) | 49,930 |
| Backlight Amperage Rating (A) | 0.300 |
| Backlight Wattage (W) | 4.140 |
| Beam Pattern | Driving/Combo |
| Bezel Material | Powder Coat Cast Aluminum |
| Brightness (Lumens) | 11225 |
| Description | Driving/Combo; Amber |
| Housing Color | Black |
| Housing Material | Powder Coat Cast Aluminum |
| Lens Color | Amber |
| Lens Material | Hardcoated Polycarbonate |
| Light Quantity | 1 |
| Lighting Modes | High Beam/Low Beam/Day-Time Running Backlighting |
| Lighting Quantity | 6 |
| Lighting Technology | LED |
| Lighting Type | Forward Projecting |
| Mounting Hardware Included | Yes |
| Mounting Hardware Material | Stainless Steel |
| Overvoltage Protection | Built-In |
| Product Type | LP6 Pro LED Light Pod |
| Secondary Amperage Rating (A) | 1.000 |
| Secondary Brightness (Lumens) | 1972 |
| Secondary Light Quantity | 4 LEDs |
| Secondary Lighting Technology | LED |
| Secondary Lighting Type | Integrated Peripheral Technology (IPT) |
| Secondary Wattage (W) | 15 |
| Terminal Connector | DT06-4S Deutsch |
| Terminal Type | Mating Connector |
| Universal or Specific | Universal |
| Wattage (W) | 103.500 |
| Wiring Harness Included | No |
Baja Designs 270013 Installation Sheet
