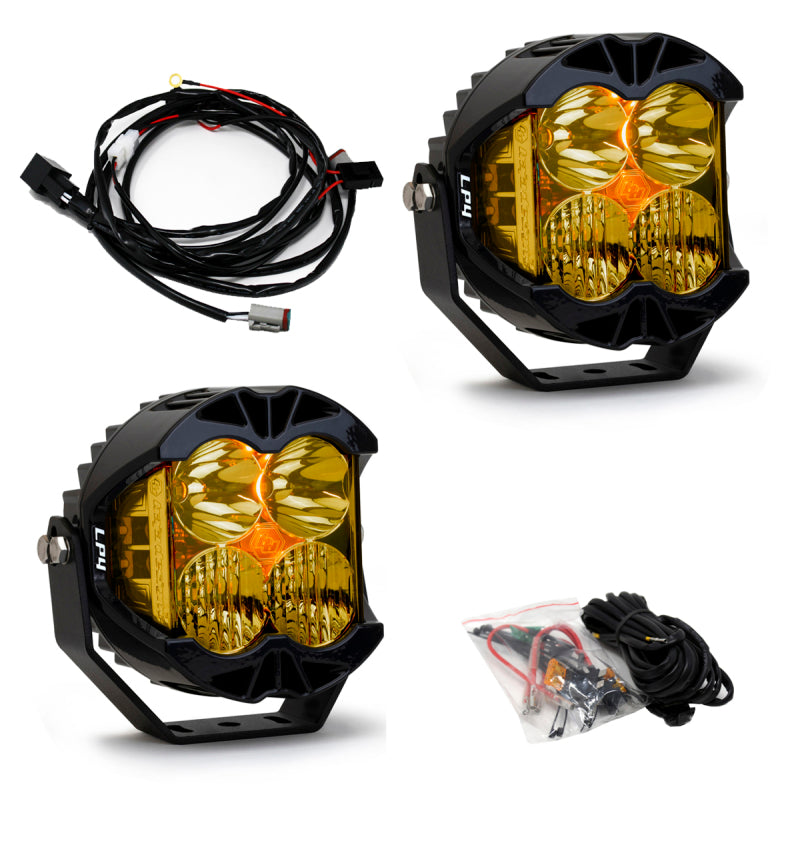

Baja Designs LP4 Pro Driving/Combo LED - Amber (Pair)
Baja Designs LP4 Pro Driving/Combo LED - Amber (Pair)
SKU:BAJ297813
Fitment: UNIVERSAL
Couldn't load pickup availability
Not sure if this will work for your UTV? Give us a call at (520) 849-6208 so we can help find the right part for you!
LP4 Pro Driving/Combo LED - Amber (Pair)
The LP4 is the smallest variant in the LP lineup and uses the same design architecture of its larger siblings. The LP4 features a total of 8,857 raw lumens, pumping out 6,885 forward projecting raw lumens and 1,972 raw lumens of dedicated peripheral lighting courtesy of our patented Integrated Peripheral Technology (IPT) providing 200-degree spread of light that illuminates zones 1, 2 and 3 along with reaching into zone 4 spot. To keep your light performing at its highest level, the LP4 integrates our proprietary Direct Ducted Cooling (DDC) technology that allows air to travel through the front of the housing and over the rear heat sinks - drastically improving cooling capacity and performance. The addition of red, blue, or green backlight options alongside our original amber on the LP4 Pro gives enthusiasts the choice to customize their vehicle for shows, photo shoots or anywhere they want to bring attention.
Specifications
| Overvoltage Protection | Built-In |
| Product Type | LP4 Pro LED Light Pod Pair w/ Wiring Harness |
| Secondary Amperage Rating (A) | 1.000 |
| Secondary Brightness (Lumens) | 1972 |
| Secondary Light Quantity | 4 LEDs |
| Secondary Lighting Technology | LED |
| Secondary Lighting Type | Integrated Peripheral Technology (IPT) |
| Secondary Wattage (W) | 15 |
| Terminal Connector | DT06-4S Deutsch |
| Terminal Type | Mating Connector |
| Universal or Specific | Universal |
| Wattage (W) | 75.900 |
| Wiring Harness Included | Yes |
| Amperage Rating (A) | 5.500 |
| Average Rated Life (hr.) | 49,930 |
| Backlight Amperage Rating (A) | 0.350 |
| Backlight Wattage (W) | 4.830 |
| Beam Pattern | Spot |
| Bezel Material | Powder Coat Cast Aluminum |
| Brightness (Lumens) | 8857 |
| Description | Spot; Clear; Pair |
| Housing Color | Black |
| Housing Material | Powder Coat Cast Aluminum |
| Lens Color | Clear |
| Lens Material | Hardcoated Polycarbonate |
| Light Quantity | 2 |
| Lighting Modes | Beam/Day-Time Running Backlighting |
| Lighting Quantity | 4 |
| Lighting Technology | LED |
| Lighting Type | Forward Projecting |
| Mounting Hardware Included | Yes |
| Mounting Hardware Material | Stainless Steel |
Standards & Compliance
| Standards/Compliance (Durability) | Exceeds MIL-STD810G (Mil-Spec Testing) |
| Standards/Compliance (Impact Resistance) | IK10 Compliant (Mechanical Impact Testing) |
| Standards/Compliance (Water Resistance) | IP69K (Waterproof up to 9ft & Pressure Washable) |
Baja Designs 297813 Installation Sheet
